DONGFANG TURBINE · INDUSTRIAL COMPRESSORS
CG integrally geared compressors
Review nine CG integrally geared compressor models using published flow grades and typical unit powers, then submit actual process conditions for manufacturer technical assessment.
- Catalogue models
- 9
- Compressor design
- Multi-shaft gear-type
- Flow grade unit
- m³/h
PRODUCT OVERVIEW

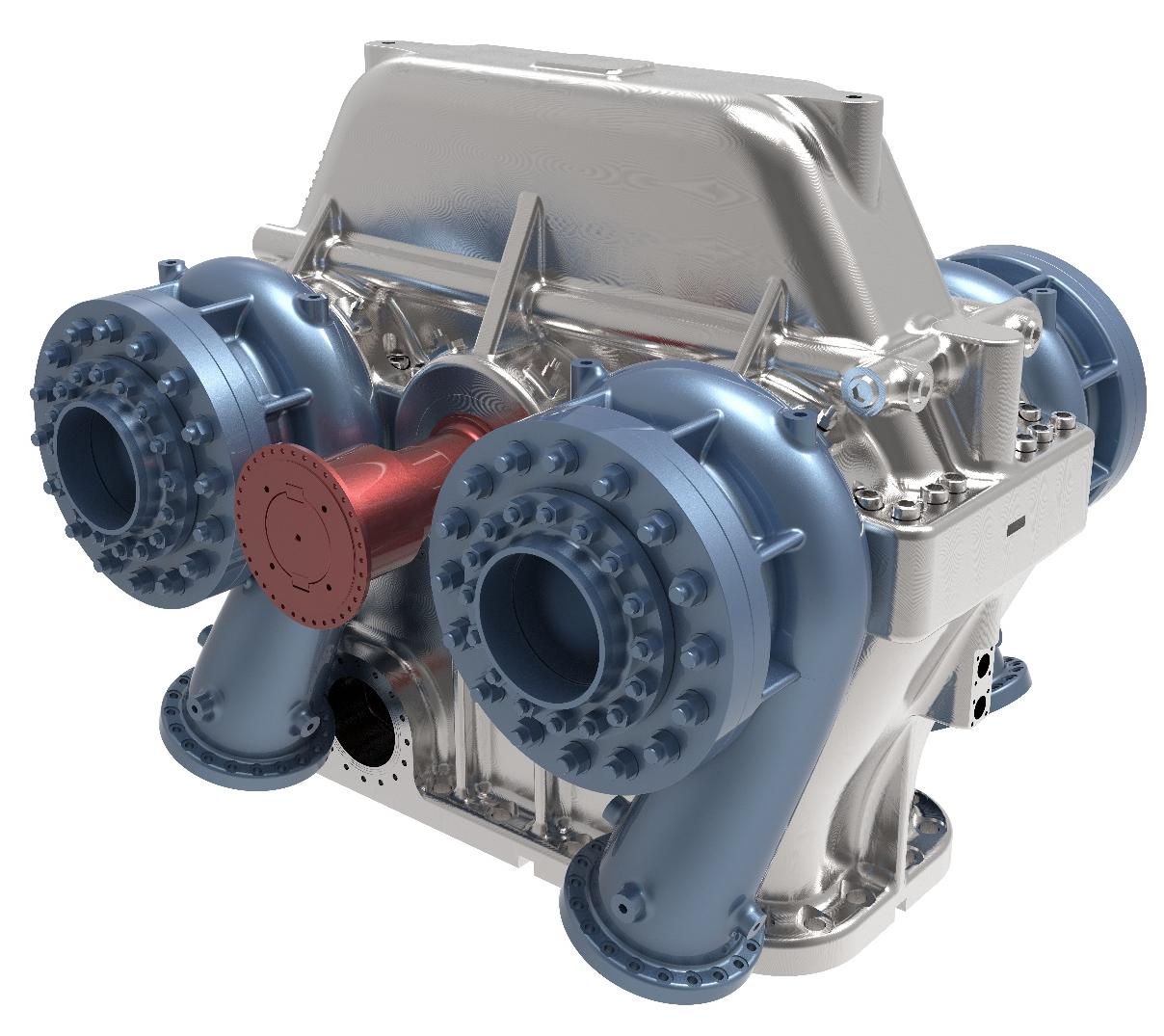

CG integrally geared.
The CG family is titled Multi-shaft Gear-type Compressor Product Series in the manufacturer catalogue. Its nine model rows list a flow grade in m³/h and a typical unit power in MW.
Use these grades to organize an initial enquiry. CHENDA INDUSTRIAL coordinates your process data and supply requirements with the manufacturer to establish a project-specific technical and commercial response.
CATALOGUE REFERENCE
Series parameters.
Compare each row as a separate catalogue reference. Final selection depends on the complete operating duty.
Scroll the table horizontally to see every parameter, source and enquiry link.
| Model | Flow gradem³/h | Typical unit powerMW | SourcePDF page | Enquiry |
|---|---|---|---|---|
| CG1 | 1000 | 1 | p. 10 ↗ | |
| CG2 | 10000 | 4 | p. 10 ↗ | |
| CG3 | 25000 | 15 | p. 10 ↗ | |
| CG4 | 30000 | 18 | p. 10 ↗ | |
| CG5 | 40000 | 20 | p. 10 ↗ | |
| CG6 | 50000 | 20 | p. 10 ↗ | |
| CG7 | 120000 | 25 | p. 10 ↗ | |
| CG8 | 240000 | 35 | p. 10 ↗ | |
| CG9 | 480000 | 50 | p. 10 ↗ |
The model table is transcribed from the manufacturer's compressor catalogue, PDF physical page 10. Flow grades and typical unit powers are reference points, not operating limits or performance guarantees.
The source uses m³/h and does not identify normalized flow on this series page. The flow basis must be stated in the project requirement.
This series table does not specify gas compatibility, pressure limits, materials, stage configuration or the complete package supply scope.
Full source reading notes
The source lists a flow grade and typical unit power for each model. These are not minimum/maximum operating limits.
The flow unit is m³/h, not Nm³/h.
Series scope.
- CG identifies the manufacturer's multi-shaft gear-type compressor series, presented here as the integrally geared family.
- Each model has one published flow grade in m³/h, rather than a minimum-to-maximum operating band.
- Each model has one typical unit power in MW; the table does not define a project-specific driver rating.
- The complete series table provides nine model reference points for initial procurement review.
SOURCE DOCUMENTS
Technical literature.
Source file: 【中英文】东方汽轮机压缩机产品介绍-20261008-2.pdf
START YOUR ENQUIRY
Bring the key information together.
Send the details you already have. CHENDA will coordinate open technical questions with the manufacturer.
- Gas composition, contaminants and process specification.
- Required flow for each duty case, with units and the actual or reference temperature and pressure basis.
- Inlet pressure, required outlet pressure and inlet temperature for each defined duty case.
- Operating mode, duty variation and any process control requirements.
- Driver preference, available utilities and specified package interfaces.
- Process datasheet or flow diagram, supply boundary, site location and required delivery schedule.
Questions about this series.
Is a published flow grade an operating range?
No. The CG table lists one flow grade per model. It does not state minimum and maximum operating limits or guarantee performance across an aggregated series range.
Is the flow unit the same as the CAV or CC table?
No. The CG page uses m³/h; CAV and CC use normalized-flow units. State your flow basis explicitly so actual and normalized volumes are not compared directly.
Does typical unit power define the required driver?
No. It is a catalogue reference value. Required power and driver selection depend on the actual process duty and the manufacturer's project assessment.
